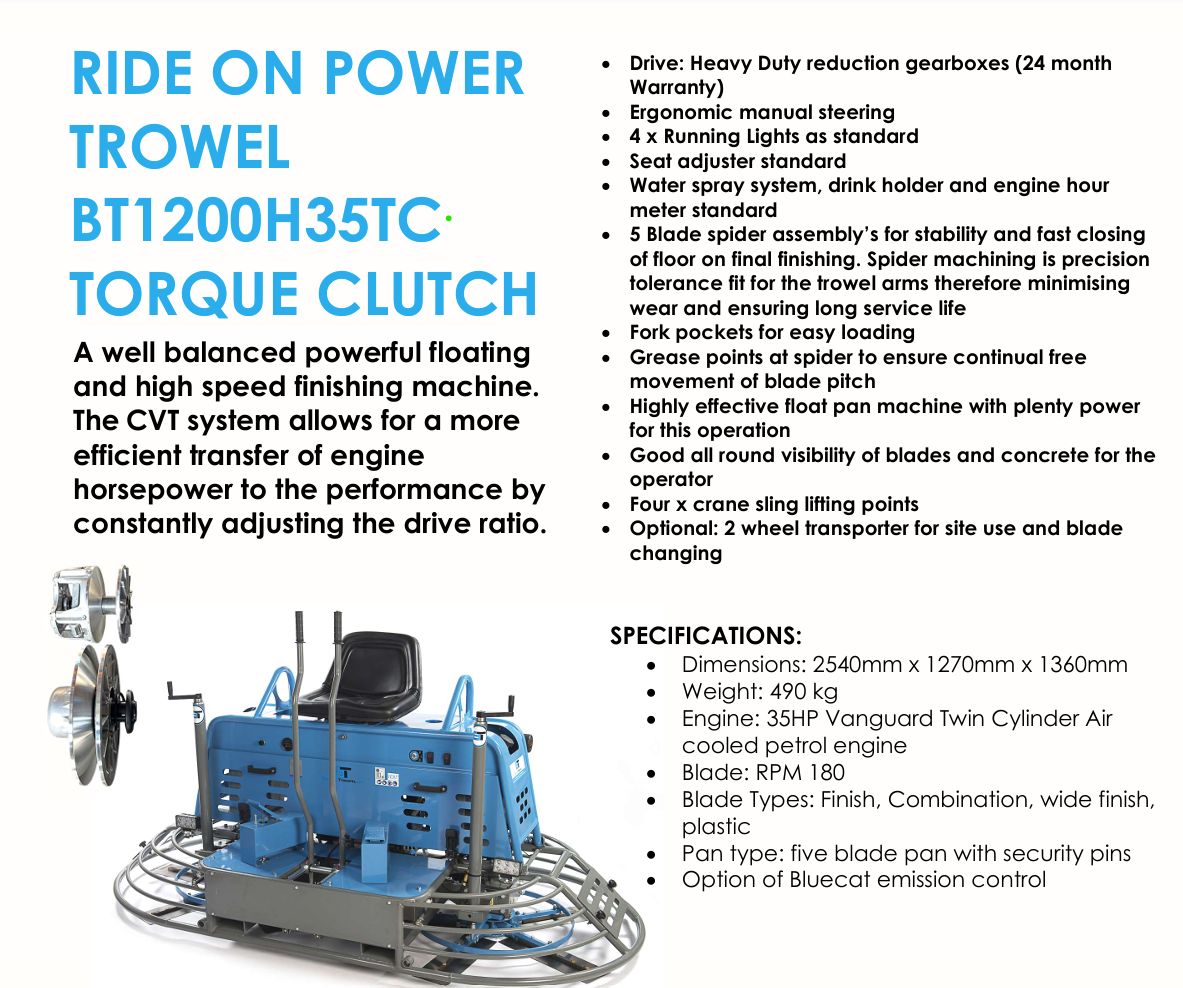

BT1200 8' Rider Manual with Vanguard 35 HP

 A well balanced powerful floating and high speed finishing machine. The CVT system allows for a more
efficient transfer of engine horsepower to the performance by constantly adjusting the drive ratio.

Drive: Heavy Duty reduction gearboxes
 Ergonomic manual steering
 4 x Running Lights as standard
 Seat adjuster standard
 Water spray system, drink holder and engine hour
meter standard
 5 Blade spider assembly’s for stability and fast closing
of floor on final finishing. Spider machining is precision
tolerance fit for the trowel arms therefore minimising
wear and ensuring long service life
 Fork pockets for easy loading
 Grease points at spider to ensure continual free
movement of blade pitch
 Highly effective float pan machine with plenty power
for this operation
 Good all round visibility of blades and concrete for the
operator
 Four x crane sling lifting points
 Optional: 2 wheel transporter for site use and blade
changing

SPECIFICATIONS:
 Dimensions: 2540mm x 1270mm x 1360mm
 Weight: 490 kg
 Engine: 35HP Vanguard Twin Cylinder Air
cooled petrol engine
 Blade: RPM 180
 Blade Types: Finish, Combination, wide finish,
plastic
 Pan type: five blade pan with security pins
 Option of Bluecat emission control
